New Product Cheese Making Machine Cheese VatMachine Specifications:
             Size : from 100 to 10000L
           Material : SUS304 or SUS316

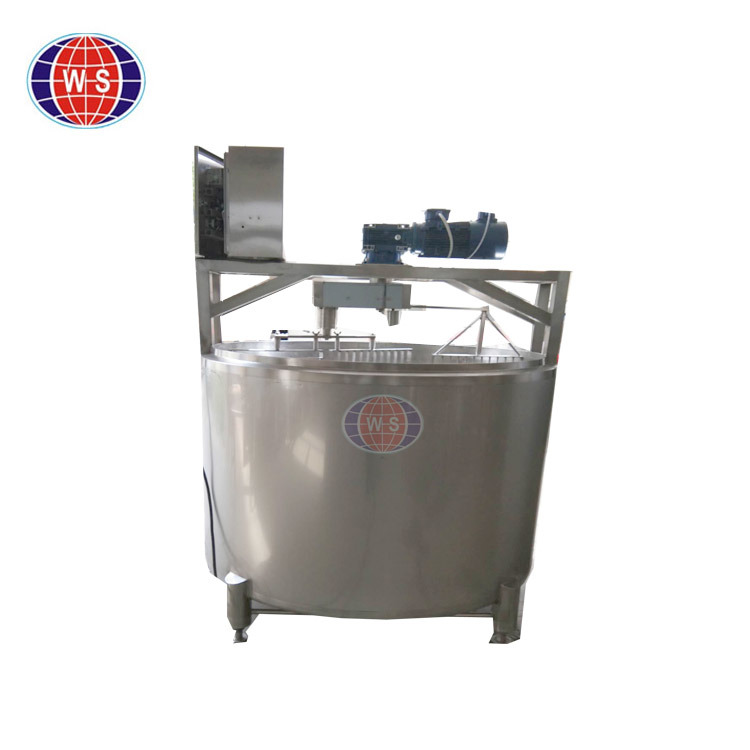

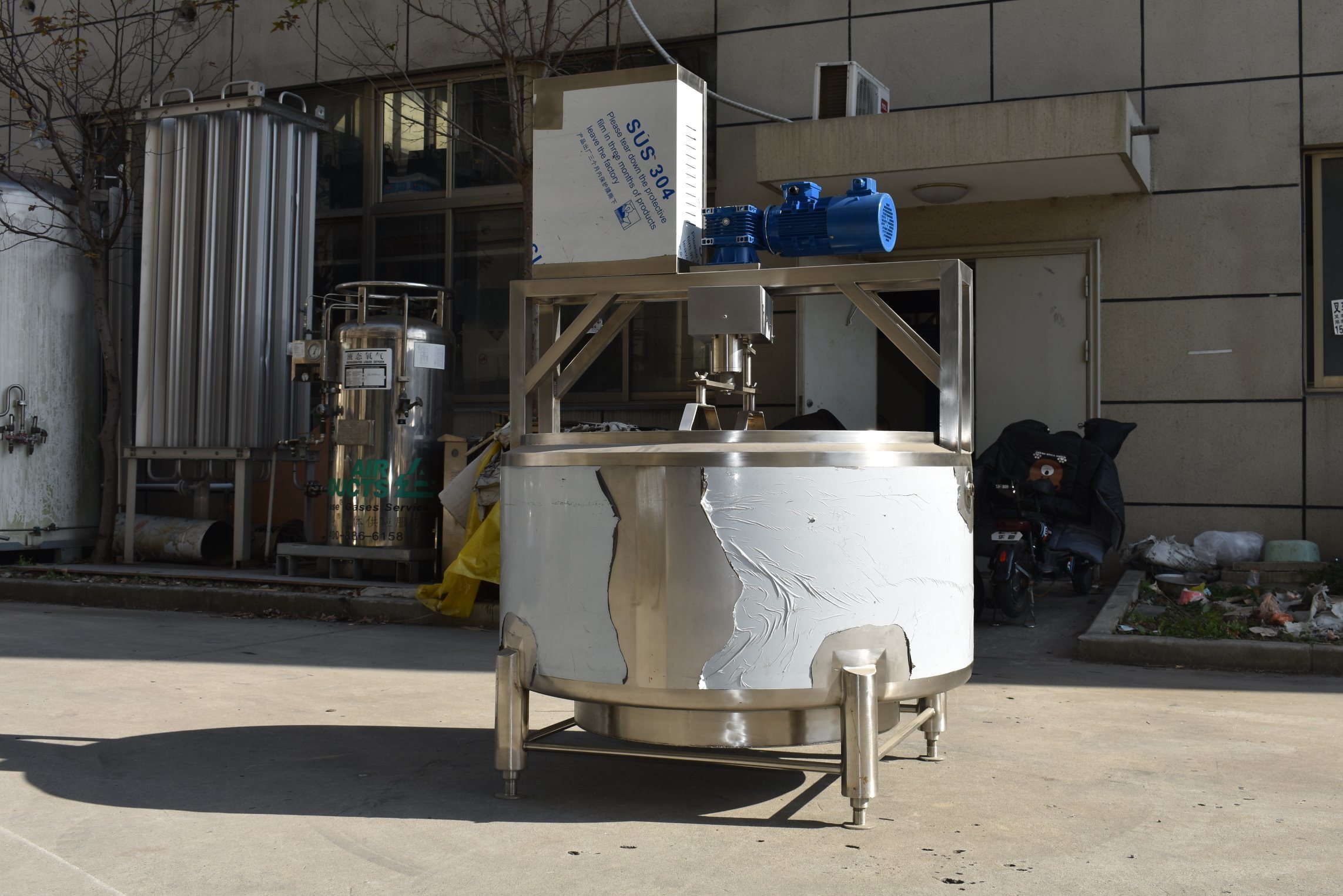

           This cheese vat consist of a triple-walled, insulated, oblong or round stainless steel vat with an overhead stirring machine.
The stirring mechanism of oblong vat is driven by two motors: one for longitudinal move and one for the rotating motion.
The control panel is fitted into the superstructure. By means of the 'touch screen on this panel various programs for stirring, cutting and tipping can be executed.
The programs could be customized designed as PLC control system,operating the various drive components. It is controlled the accurtelt temperature of mlik in vat by an electrical thermostat system to operate  the steam valve heating water.
The oblong cheese vat is fitted with a fully automatic process controller. This controller allows programs for a range of processes for the production of types of cheeses to be stored and executed. This helps ensure uniform cheese quality.
The capacity of this cheese vat from 100 Liters to 3000 Liters depend on the requirement from the customer.

ModelCapacityMotor powerElectric heating powerSize(mm)Weight
WS-NL-0.1100L0.18KW16KWφ1100x120055KG
WS-NL-0.2200L0.37KW16KWφ1200x125078KG
WS-NL-0.3300L0.37KW16KWφ1300x135095KG
WS-NL-0.4400L0.55KW16KWφ1300x1400110KG
WS-NL-0.5500L0.55KW16KWφ1300x1450127KG
WS-NL-0.6600L0.55KW16KWφ1300x1550155KG
WS-NL-0.7700L0.75KW24KWφ1300x1700175KG
WS-NL-0.8800L0.75KW24KWφ1400x1800190KG
WS-NL-0.9900L0.75KW24KWφ1500x1800210KG
WS-NL-11000L1.1KW24KWφ1600x1800230KG
WS-NL-22000L1.5KW32KWφ1900x2000380KG
